Product name：

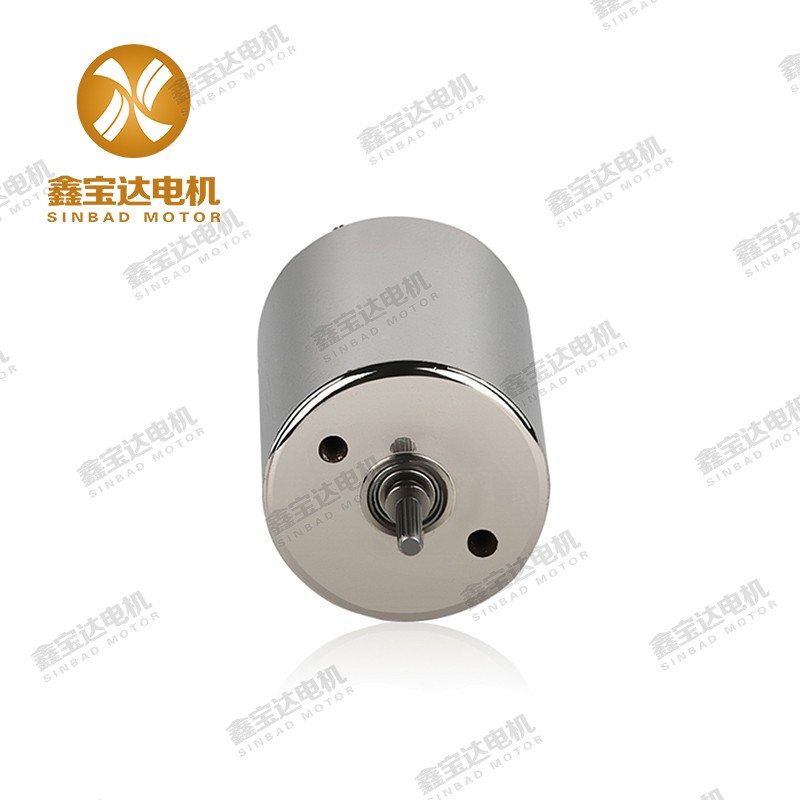

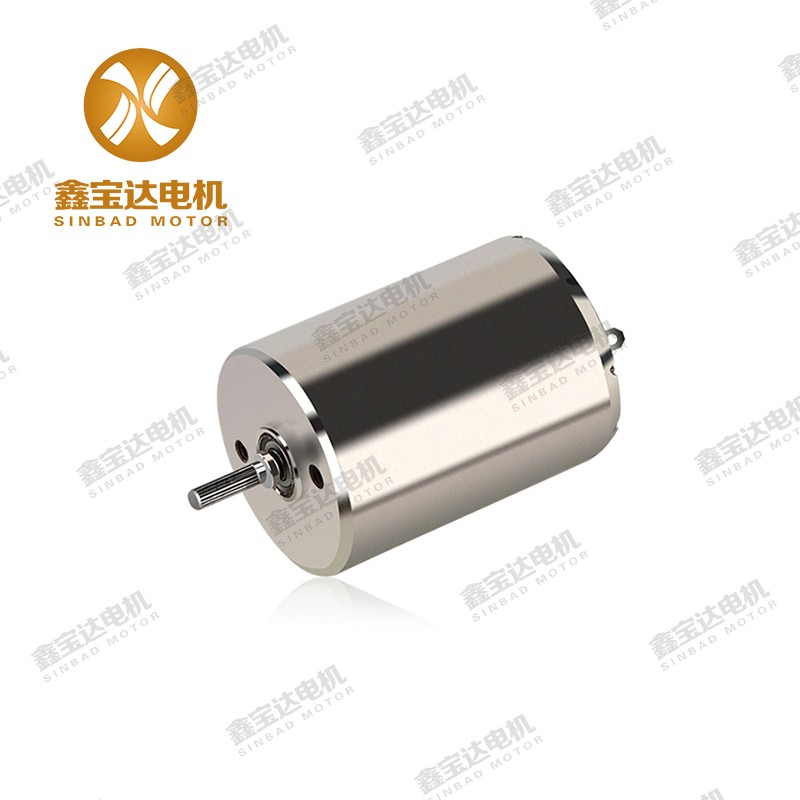

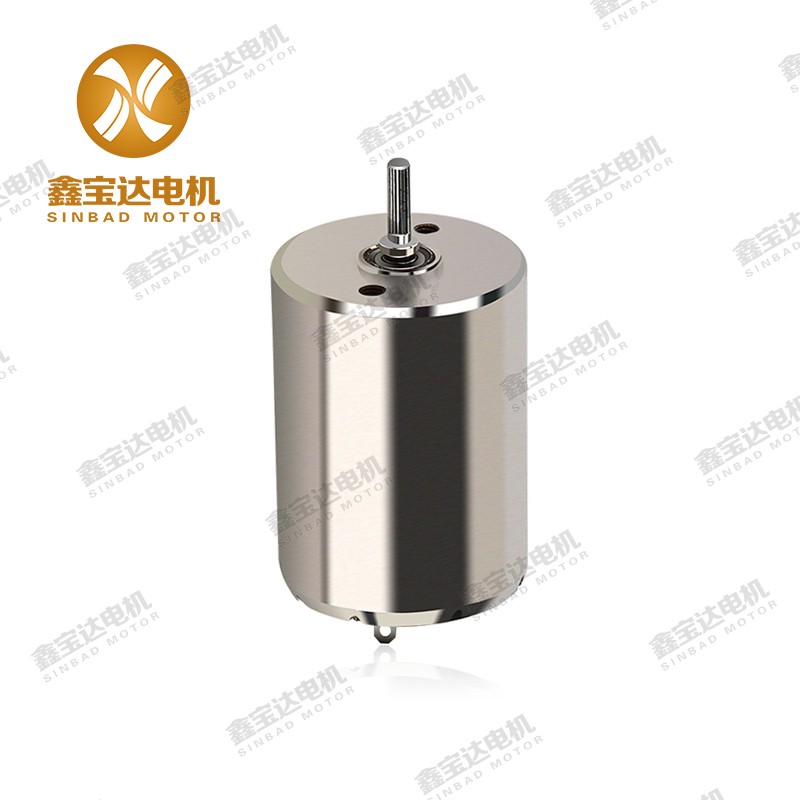

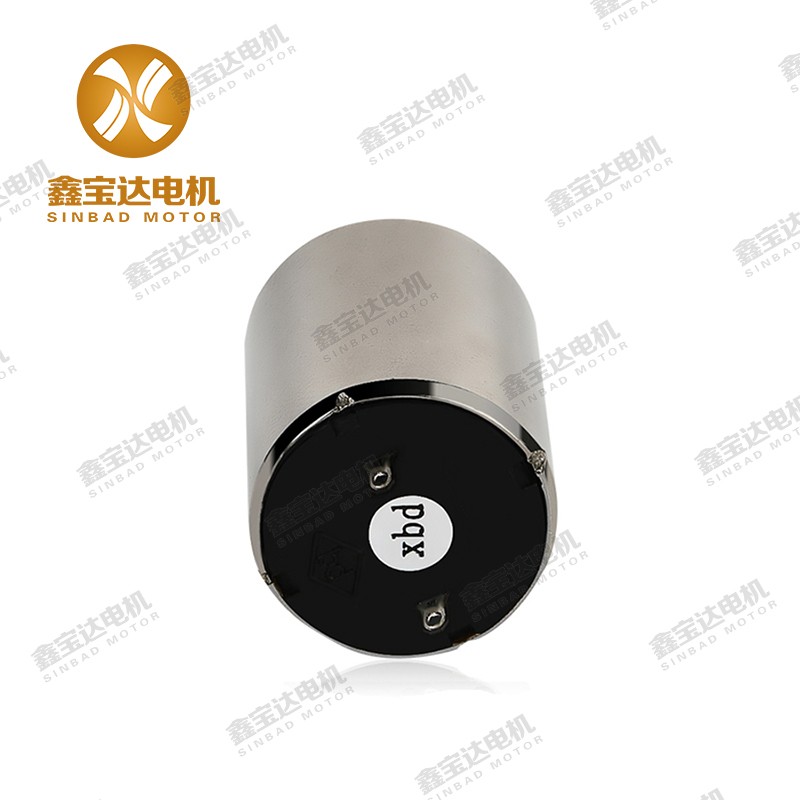

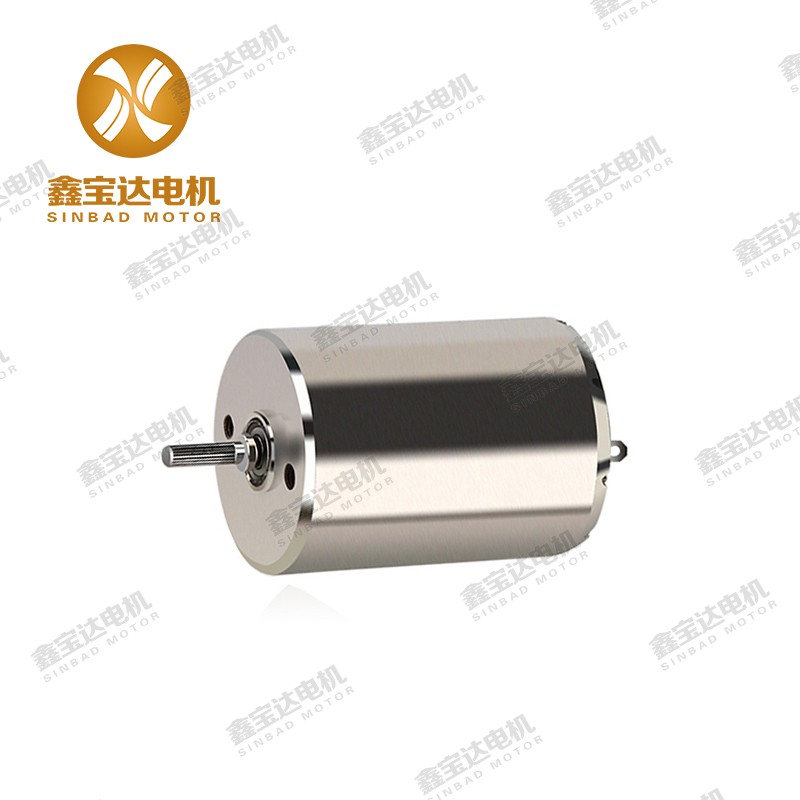

XBD-2230

Date of listing： 2024-08-20

BRUSH DC MOTOR
Size: dia 22mm length 30mm
Customized specifications are acceptable

Drawing

XBD-2230

Standard Parameters

2230 Series
		3	6	12	15	24	40
Rated Voltage		3	6	12	15	24	40	V
Armature Resistance		0.6	3	10.8	21	50	193	Ω
Max Output		3.69	2.94	3.27	2.63	2.82	2.01	W
Max Effect		79	78	79	78	77	74	%

No-load Speed		9600	9300	9500	8400	9000	8200	RPM
No-load Current		0.09	0.069	0.06	0.057	0.055	0.053	A
Locked-rotor Torque		14.7	12.1	13.2	11.9	12	9.37	mNm
Friction Torque		0.12	0.12	0.12	0.12	0.13	0.14	mNm

Characteristic: Small volume,Light-weight,Efficiency can reach 85%.

Application: Micromanipulation,Beauty apparatus,Medical equipment etc.
